Name: PIRONMAN 5 Premium Raspberry Pi 5 Case by SUNFOUNDER
Brand: SUNFOUNDER
SKU: Pironman51
Price: 93.0 AUD
Availability: PreOrder

+10

SUNFOUNDER PIRONMAN 5 Premium Raspberry Pi 5 Case.

Home/Store/Raspberry Pi

Product Details

Brand: SUNFOUNDER

Price Includes Shipping: YES

Weight: 0.51 kg

Elevate your Raspberry Pi 5 with the Pironman 5, our Top-Tier centrepiece case. Designed for unmatched style and functionality. It’s the perfect blend of aesthetics, functionality and performance:

{PRE-ORDERS Receive Automatic EXPRESS Shipment}

Raspberry Pi 5 PIRONMAN Mini PC Case (ONLY):

0.96” OLED Display showing Raspberry Pi’s CPU usage, temperature, disk usage, IP address, RAM usage etc.

The tower cooler can maintain a 100% CPU-loaded Pi to 39°C at 25°C room temperature

2 x RGB Fans, with GPIO control

1 x PWM Fan on the Tower Cooler is controlled by the Raspberry Pi system.

Supports (PCIe Gen 2.0 / PCIe Gen 3.0) NVMe M.2 SSD sizes: 2230, 2242, 2260, and 2280.

4 WS2812 Addressable RGB LED light up the whole case with a cool light effect. (Or disable if required)

IR Receiver for multi-media centers like Kodi or Volumio

Retro Metal power push button for safe Bootup/shutdown

External GPIO extender with labelled pins, for easy access

Equipped with a spring-loaded socket for easy SD card removal

Aluminium main body with clear Acrylic side panel

Features two standard HDMI ports

The Pironman 5 is not just a case; it’s an upgrade that transforms your Raspberry Pi 5 into a powerful, efficient, and stylish device. Get yours now and experience the future of Raspberry Pi cases.

Note

You need to install an OS that supports Raspberry Pi 5. Please use the latest Raspberry Pi Imager tool for system installation. The currently tested systems are:

Raspberry Pi OS (Bookworm 64 desktop/lite): Fully compatible.

Ubuntu Desktop 23.10: No SPI, causing the LEDs NOT to light up.

Kali: No I2C, causing the OLED screen to NOT light up.

Home Assistant: CANNOT enable I2C or SPI functions.

Known Compatible NVMe SSD

ADATA Legend 700,ADATA Legend 800,AData XPG SX8200 Pro,Axe Memory Generic Drive,Crucial P2 M.2,Crucial P3 M.2,Crucial P3 Plus M.2,Inland PCIe NVMe SSD,KIOXIA EXCERIA NVMe SSD,KIOXIA EXCERIA G2 NVMe SSD,Kingston KC3000,Kingston NV2,Lexar NM710,Lexar NM620,Netac NV3000 NVMe SSD,Netac NV2000 NVMe SSD,Origin Inception TLC830 Pro NVMe SSD,Pineberry Pi Pinedrive (2280),PNY CS1030,Sabrent Rocket 4.0,Sabrent Rocket Nano,Samsung 970 EVO Plus,Samsung 980,Samsung 980 Pro,Team MP33,Western Digital SN850,Western Digital SN740,Western Digital SN570,Western Digital SN530,Western Digital Black SN750 SE (Phison Controller),Western Digital Blue SN550/SN580 series (Will require installing latest rpi-eeprom-updates, pieeprom-2024-01-24.bin fixed the Western Digital Blue SN550 NVME boot issue Refer to https://forums.raspberrypi.com/viewtopic.php?t=364... GAMMIX S70 BLADE, XPG SX8200 Pro +Others

Known Incompatible NVMe SSD

We recommend avoiding the following NVMe drives which are equipped with a Phison controller due to their proven incompatibility:

Western Digital Green SN350 series, Western Digital Black SN850 series, Western Digital Black SN770, Inland tn446 nvme drive, Corsair MP600 SSD, Samsung PM991, Kingston OM8SEP4256Q-A0, Transcend 110Q (TS500GMTE110Q), SN350 and SN570 prevented the RPi 5 from booting at all especially. Other NVMe SSD drivers equipped with the same Phison controller

You May Also Need:

Raspberry Pi 5 - (2GB, 4GB or 8GB)

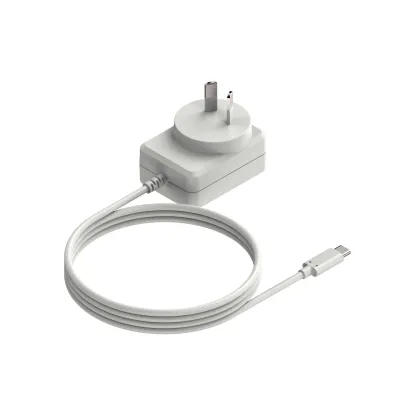

Official 5A/27W Power Supply (if adequate power is not provided it will cause issues)

Keyboard/Mouse (Wired/BT/USB)

Allow some time/patience to build this.

See Sunfounder's website for detailed video build instructions.

*Optional 3.5" LED Touchscreen Screen available as seen in the video HERE:

(The touchscreen works on both Pironman 4/5 directly from GPIO; no additional power/cables are required. Requires some manual configuration.
