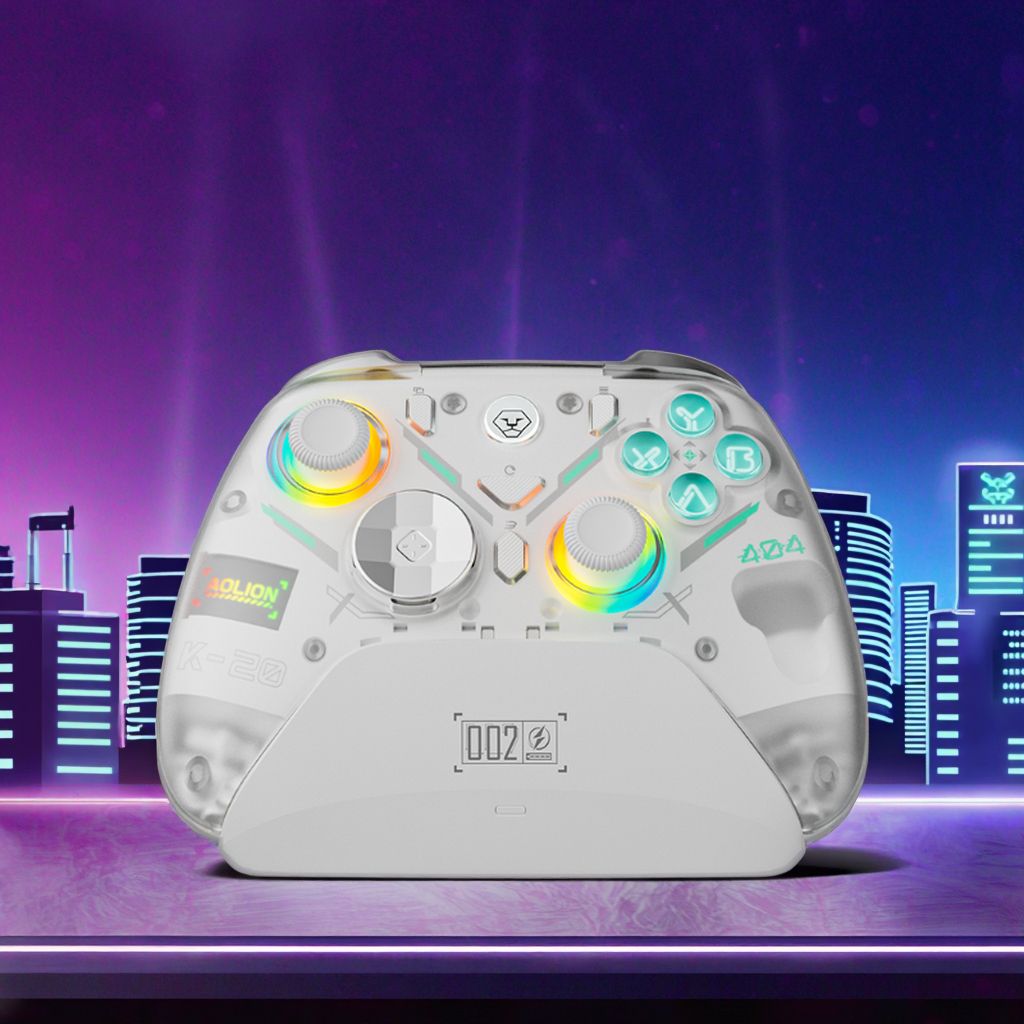

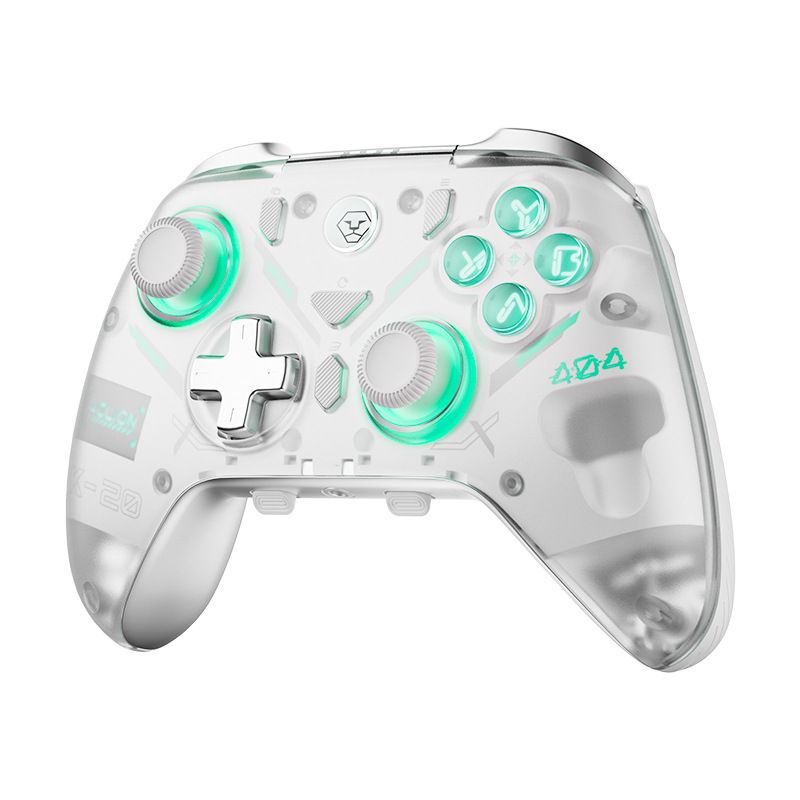

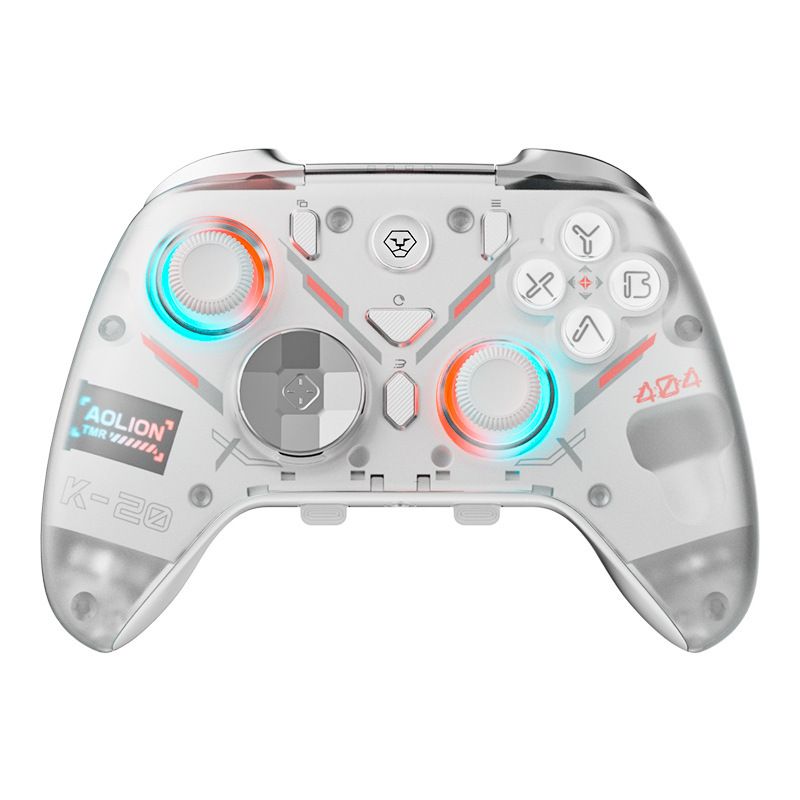

AOLION K20 TMR. Multi-Platform, Wireless, Gyro, Dock.

【Professional Performance】

AOLION K20 TMR Controller. (270gms Latest V4.11 Firmware)

Don't overlook this one. Amazing features for this price!

Macro programming + Motion sensing + Continuous firing + 1000mAh large battery supports Mobile Phone APP {KeyLinker} custom key mapping.

Supplied with charging/display dock and USB 2.4G wireless receiver, micro switch buttons + three-speed switch trigger + Swappable D-pad and joystick height replacement + magnetic cover + IML TMR joystick wired and wireless return rate 1000Hz.

K20 uses Tunnel Magnetoresistance (TMR) technology for its analog sticks, offering enhanced precision, durability, and energy efficiency compared to traditional and Hall Effect sensors. This advanced technology utilises quantum tunnelling to sense magnetic fields, translating into highly accurate and responsive stick inputs without the wear and tear that causes "stick drift" in older controllers.

XBOX/SWITCH/ABXY Layout Swappable via HOTKEY combo. (HOME+MENU + B Key for 1 second)

(Highly suggest reading the Instructions for many more useful options)

Upgradable & very configurable via the KeyLinker Mobile Application. (Android/IOS)

Pi-Mania Version will be updated to the latest version, which now supports Wireless/BT Nintendo Switch 2 Sleep/Wake via Controller. (using the method listed in the supplied manual for first-time connection only)

This K20-TMR controller has surprised us with features that you would normally pay a LOT more for. I use it with my RGH 360 also. (Ask if you're curious how)

*Hall Effect was last year, TMR is the future.

* Downloadable PDF Instructions & Features will be available to download after payment. (Small booklet also provided with the item)

1000Hz Polling Rate, Extremely LOW 1.01ms latency using the Cable or Dongle provided. (Gamepadla Website Polling Test)

Drew's Testing:

Ok, this K20 TMR has features way above the asking price:

In the BOX: K20 TMR + Charging DOCK + Extra Higher Sticks + EXTRA D-Pad + 2.4g Dongle + USB-C Cable + Removable/Customisable Magnetic Faceplate.

TMR Joysticks + Hall Triggers. (3 Switchable activation lengths. Long for driving (throttle pedal style, instant for FPS)

Connections:

NINTENDO Switch = via BT

(With V4.11 firmware, this can wake/sleep the Switch 2)

PC = USB cable or 2.4 GHz dongle.

PC = Dinput/Xinput - Switchable, (HOLD View+Menu for 3secs)

Xinput identifies as Xbox 360 controller

Dinput identifies as a Gamepad

PC Switch identifies as a PRO Controller. (Perfect for Switch Emulation)

Android /BT (Identifies as GamePad)

IOS /BT / MFI Games Supported

---------------

FEATURES!

ABXY/BAYX Swappable Layout (by HOLD VIEW & MENU for 1 second.)

D-Pad and Left Joystick Swap (HOLD L3/VIEW/MENU for 1 second)

Independent Switchable L/R HALL Trigger Travel Length Switch. (Racing games/FPS games)

Joystick edge switching (HOLD TURBO/CAPTURE 2 secs) Simulates Round edge/Square Edge)

Motion Sensing/GYRO mapping to Joysticks.

L/R independent / (HOLD MENU/L3 3 Secs / MENU/R3 3 seconds)

Axis Reverse / (HOLD MENU/X 1 Secs)

Sensitivity adjustable / (MENU + D-PAD U/D/L/R)

RGB Light effects and LEDs OFF mode

Macro programming. (record multiple button presses and map to one key for playback)

TURBO with Adjustable TURBO speed

Vibration levels (Weak/medium/Strong/OFF)

Rear Switchable (so 4 devices can/could be permanently connected, PC/Switch/Android/iPad)

++ Keylinker APP support for deeper programming options

++ Upgradable via PC or KeyLinker firmware

** PDF Instructions are downloadable after purchase**
